You are required to set up a small network with network ID: 200.100.50.160/27. In this network, there are three routers, two servers, one acting as DHCP Server and another as Mail/DNS Server. You can use Cisco Packet Tracer for this assignment (more information on use of Packet Tracer can be discussed with your Lecturer in Tutorial class).

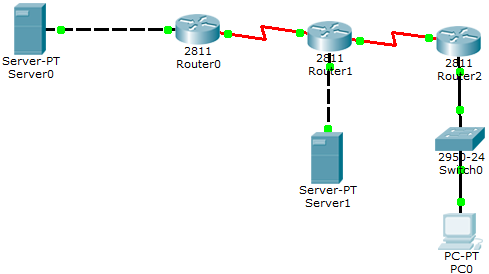

Topology is as shown below:

The requirements are as follows:

1. PC0 belong to abc network, which has only 10 networking devices (including printers, scanners and PCs etc.)

2. abc network require only 5 dynamically assigned IP addresses, so PC0 will get IP address from DHCP Server

3. Server0 will act as DHCP Server for abc network, first assigned IP address must be 200.100.50.170

4. Server1 will act as MAIL server for abc.com, create two email user IDs as follows:

a. [email protected]  user name: xyz       password: abc123

b. @abc.com  user name:     password: xyz123

5. Server1 will also act as DNS Server for abc Network

6. When subnetting the network, first subnet must be allocated to abc Network which must have IP address 200.100.50.170. Other subnets/IP address must be configured in ascending order as follows:

a. Lowest subnet to server0

b. Next subnet for connecting Router0 and Router1

c. Next subnet to connect Server1

d. Last (highest) subnet to connect Router1 and Router2

7. Server0 and server1 should be configured with static IP addresses

8. Use RIP Version2 as routing protocol

Fill the table below with information:

Following information must be provided as snap shots:

1. Show routing tables of all three routers

2. Show running configuration of Router2

3. Ping from PC0 to Server0 and Server1

4. From PC0 send and receive minimum 4 email between  you show the snap shot of conversation as per example given below:

5. Show dynamically obtained IP address by PC0

6. Show the DHCP Server setting

7. Submit your packet tracer file by email

8. Properly drafted assignment submission

9. Clear Subnetting calculations
