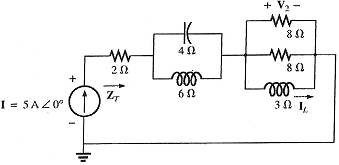

Q1. For the given circuit, determine, V2 and IL

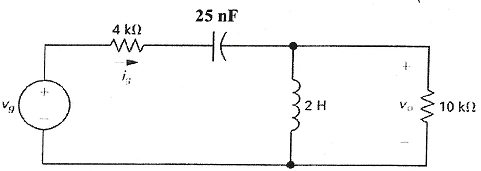

Q2 Determine the phase relation between Vo and ig for the given network if Vg = 45sin(317t)

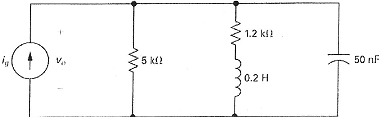

Q3 Determine vo for the given network if ig = 2.5 sin(415t + 90)
